KB Series
KB Series
A slim, IP65-rated outdoor fixed LED display with 90° connection capability and front serviceability — suited for column wraps, cubes, and curved architectural installations.
A slim, IP65-rated outdoor fixed LED display with 90° connection capability and front serviceability — suited for column wraps, cubes, and curved architectural installations.
Outdoor
Curve-capable
Buy or rent
Full installation
2-Year Warranty
Outdoor
Full installation
Curve-capable
2-Year Warranty
Buy or rent
KB Series

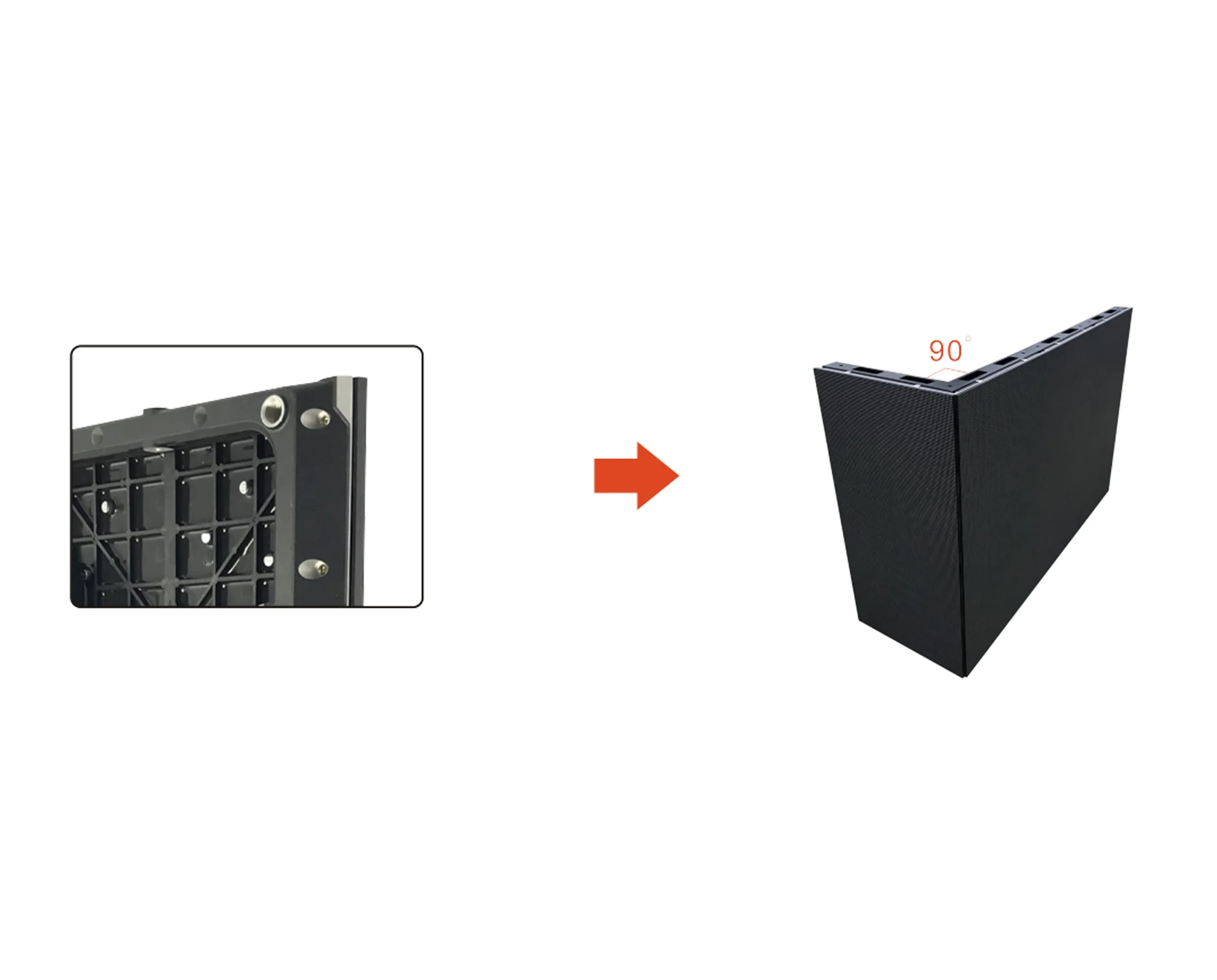

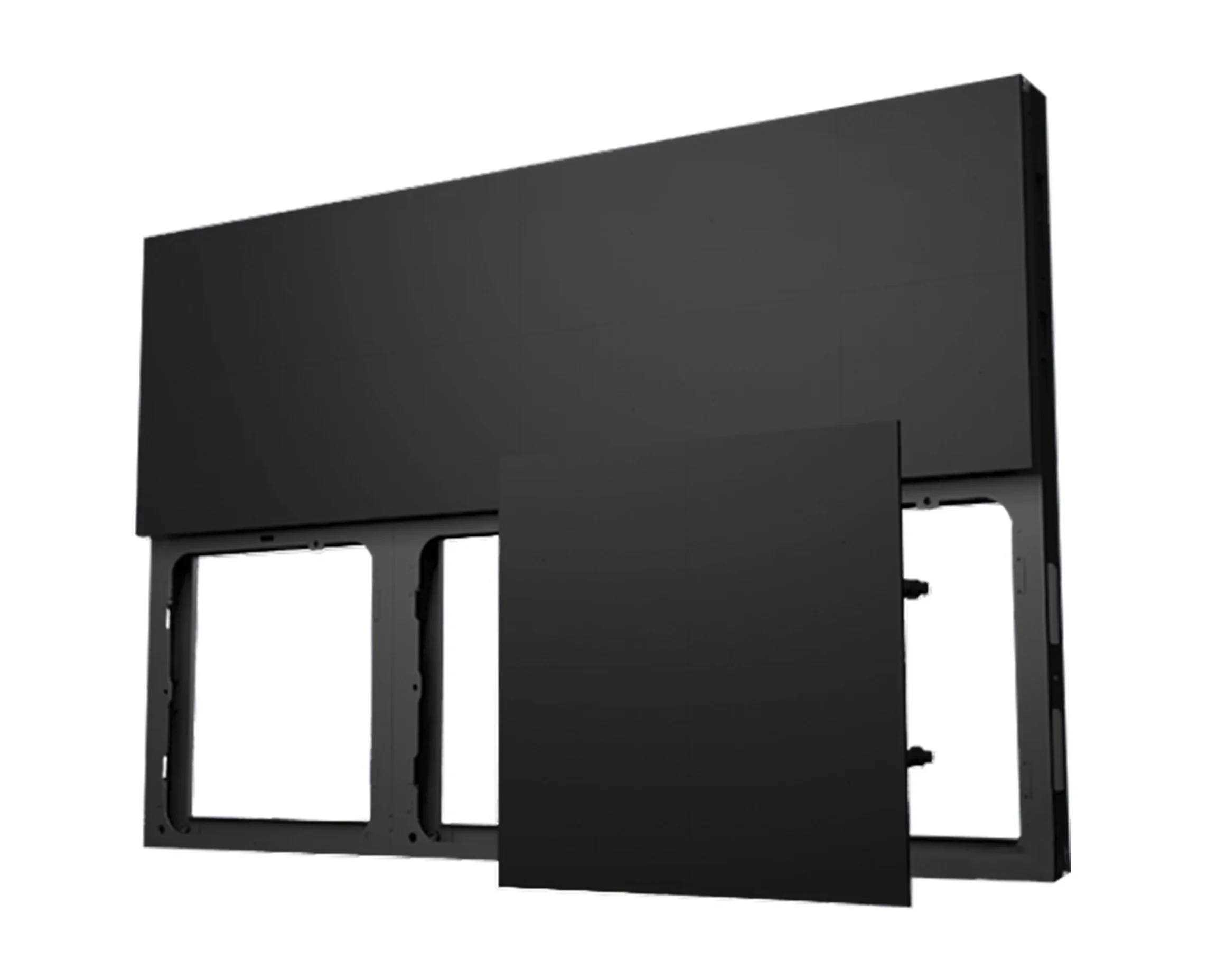

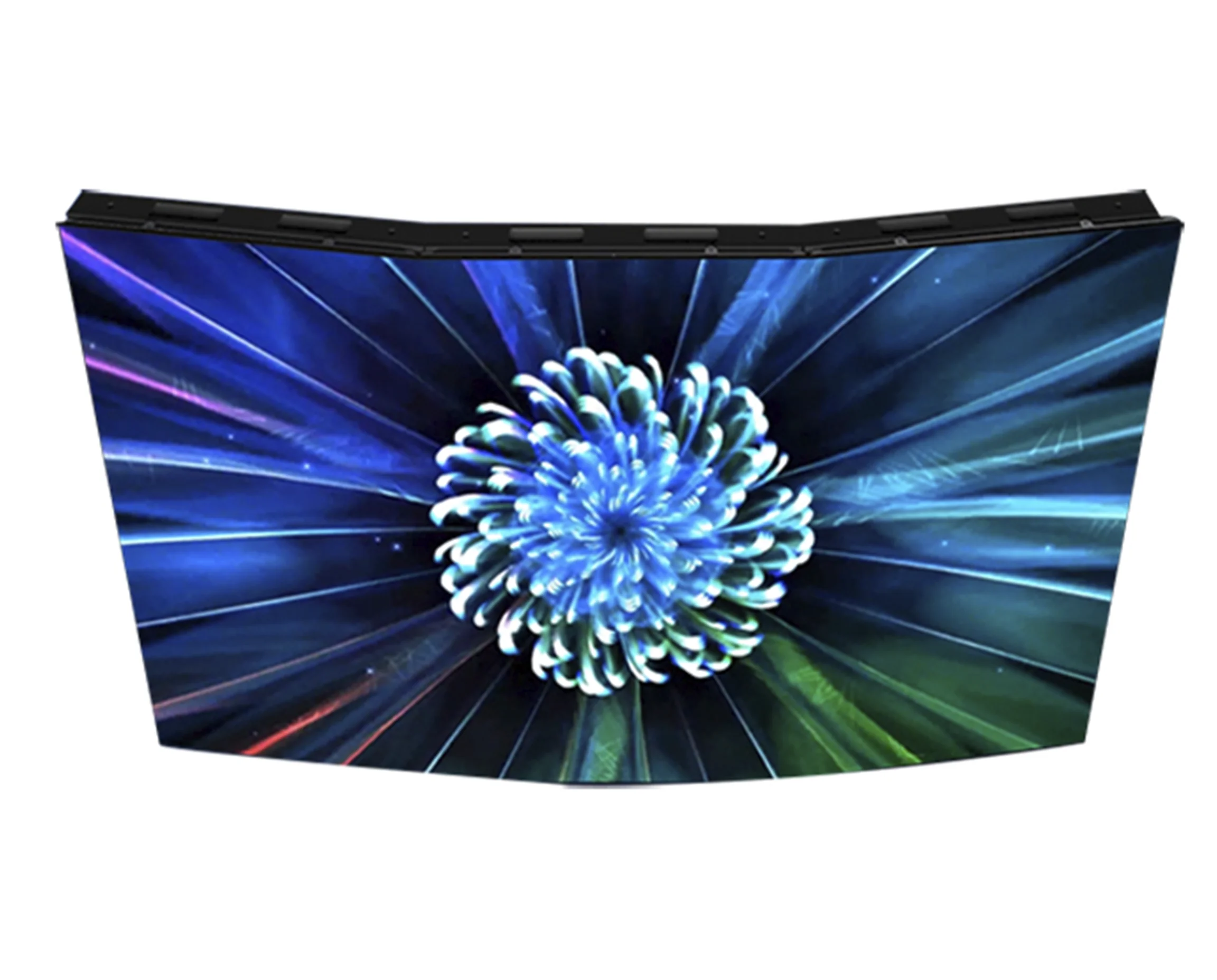

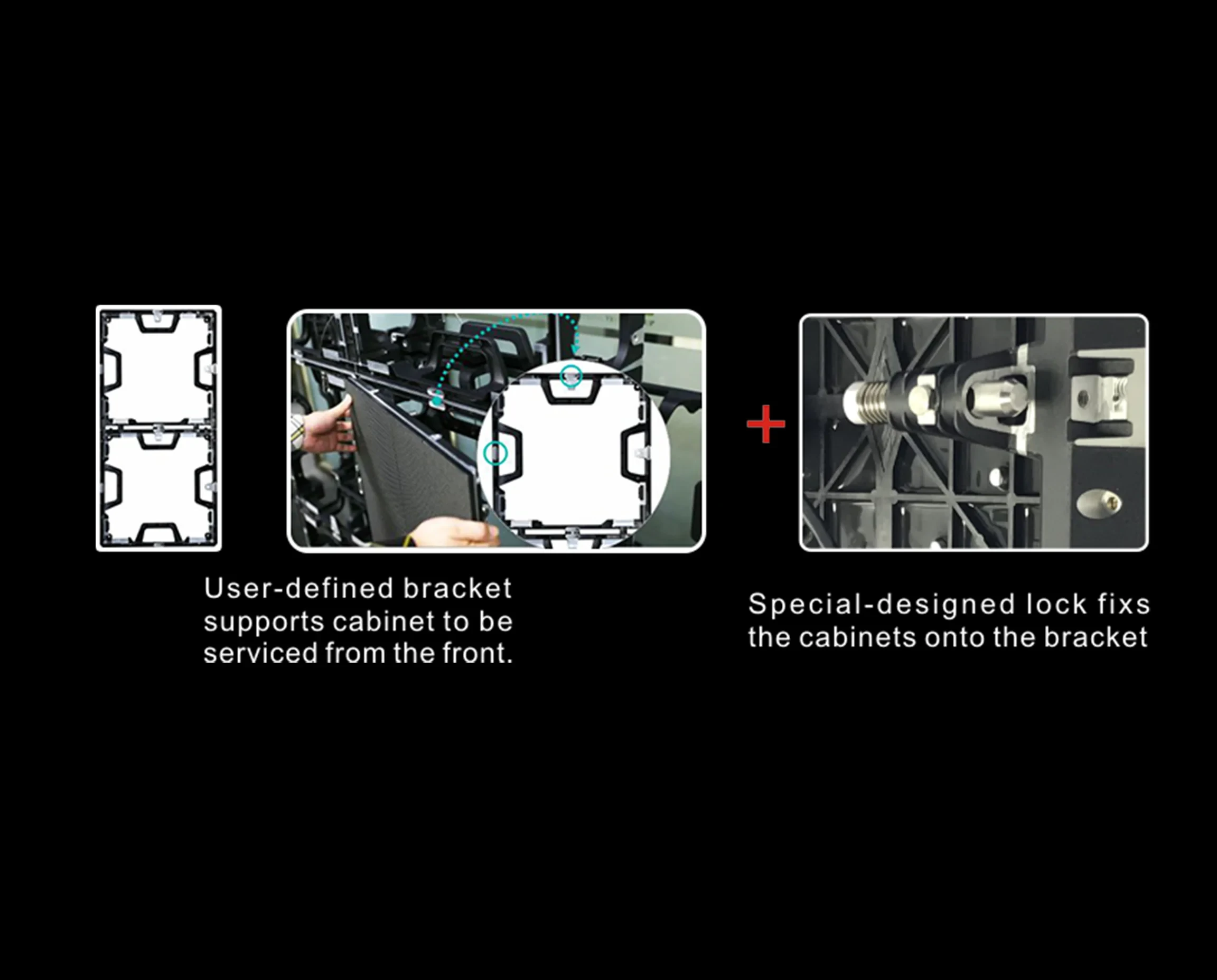

The KB Series (KB2 / KB3 / KB4 / KB5 / KB7) is Lightking's versatile outdoor fixed display, engineered specifically for architectural installations that go beyond flat surfaces. At just 32 mm deep, it is one of the slimmest outdoor-rated fixed panels in its class. IP65 waterproofing is achieved through PG connector protection and direct silicone application on modules, which also enhances heat dissipation for long-term outdoor reliability. A 45° chamfer on cabinet sides enables 90° corner connections, opening up installation possibilities including column wraps, cube configurations, double-face applications, and curved surfaces. Front service access allows maintenance without rear access, making it practical for installations where back-of-screen access is restricted. The KB Series is a proven solution for retail facades, outdoor signage columns, and any installation where geometric flexibility and weatherproofing are equally essential.
Models: KB2 / KB3 / KB4 / KB5 / KB7
Depth: 32 mm
IP grade: IP65
Connections: Curve, 90°, double-face, cube
Maintenance: Front access
Application: Outdoor fixed, column wrap, architectural facades
KB Series
The KB Series (KB2 / KB3 / KB4 / KB5 / KB7) is Lightking's versatile outdoor fixed display, engineered specifically for architectural installations that go beyond flat surfaces. At just 32 mm deep, it is one of the slimmest outdoor-rated fixed panels in its class. IP65 waterproofing is achieved through PG connector protection and direct silicone application on modules, which also enhances heat dissipation for long-term outdoor reliability. A 45° chamfer on cabinet sides enables 90° corner connections, opening up installation possibilities including column wraps, cube configurations, double-face applications, and curved surfaces. Front service access allows maintenance without rear access, making it practical for installations where back-of-screen access is restricted. The KB Series is a proven solution for retail facades, outdoor signage columns, and any installation where geometric flexibility and weatherproofing are equally essential.
Models: KB2 / KB3 / KB4 / KB5 / KB7
Depth: 32 mm
IP grade: IP65
Connections: Curve, 90°, double-face, cube
Maintenance: Front access
Application: Outdoor fixed, column wrap, architectural facades
